TWO-PIECE ROTATING FLANGED HUB NUTS · SAE J1965

Flanged Hub Nuts
for Commercial Vehicles.

Wheel nuts and two-piece rotating flanged hub nuts (SAE J1965) — M18–M22 metric, 3/8″–4″ imperial — for commercial vehicle axle and hub applications. Manufactured in Ludhiana, India. Supplied through our Windsor, Canada office.

View products Request a quote →
Scroll
SAE J1965
ISO 9001:2015
ASTM A563

M22 × 1.5
Flanged Hub Nut

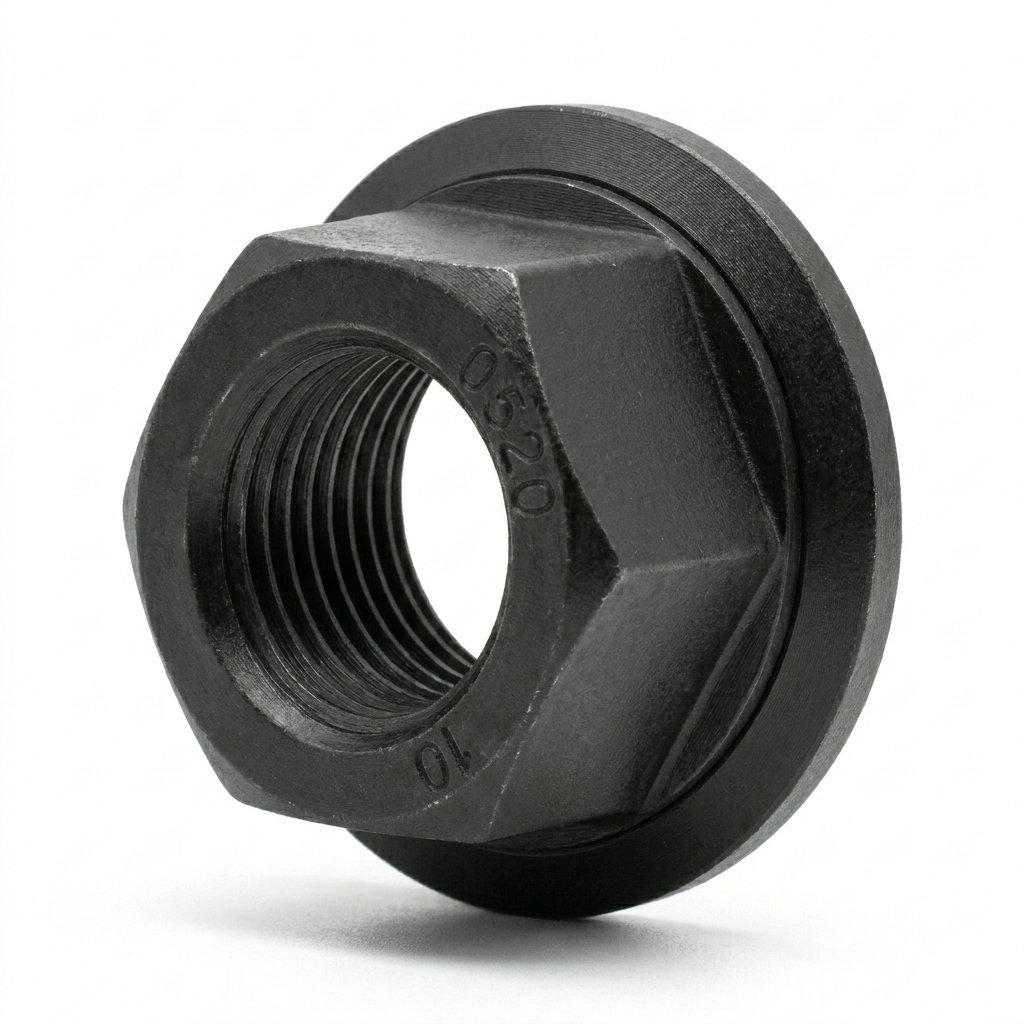

M22 × 1.5 flanged hex nut — A/F 33 mm, height 30.7 mm, material EN8D, black phosphate finish. Cross-references Meritor R006000A and Dayton 13-3052. Lot-marked, EN 10204 3.1 MTC with each shipment.

Request datasheet See full specifications →

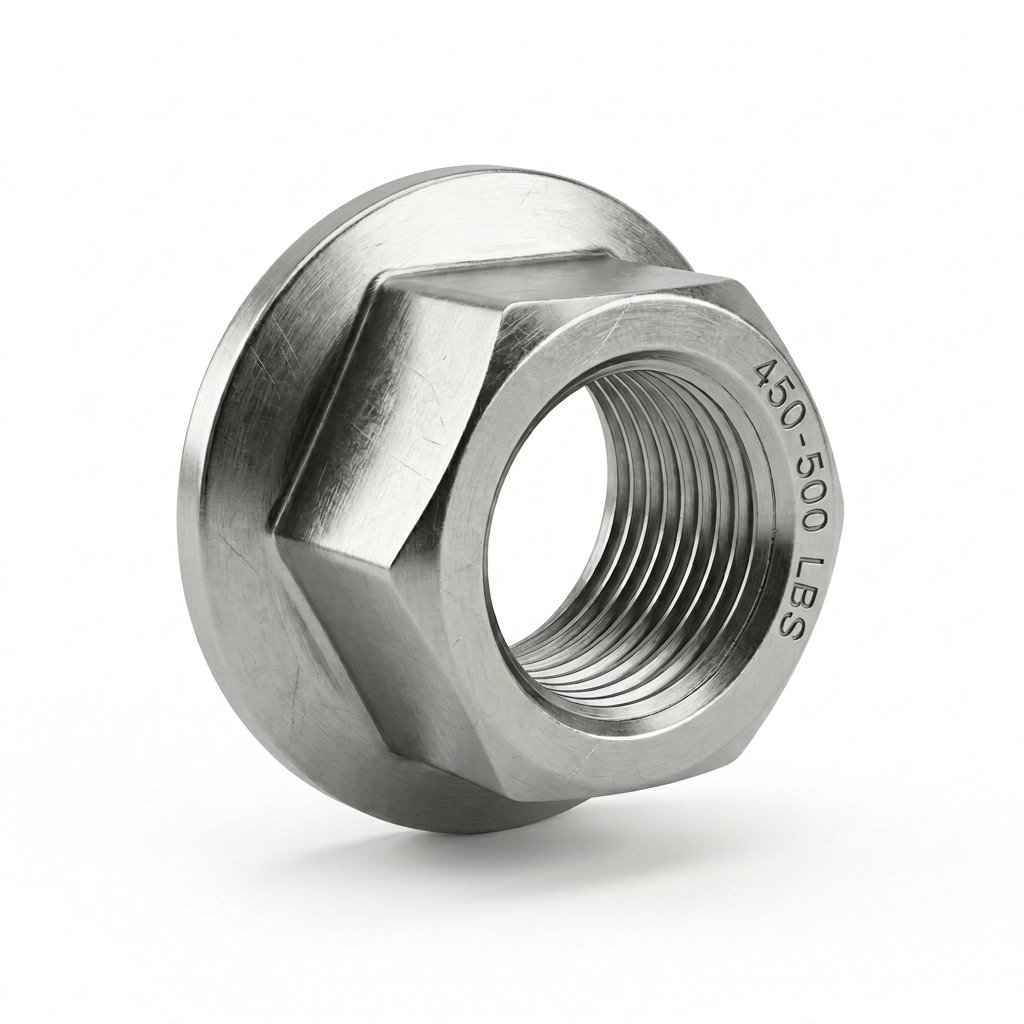

GCW M22 flanged hub nut — silver, angled view showing threads

Our Products

From M18 to M22 metric and 3/8″–4″ imperial. Aftermarket and OEM supply. EN 10204 documentation with every lot.

Commercial Vehicle

Learn more Request quote →
GCW M22 flanged hub nut — silver, top-down view

2-Piece Rotating Flange

GCW M22 two-piece flanged hub nut — black oxide finish, rotating flange

M22 × 1.5 two-piece flange nut with a rotating flange ring, 27 mm low-profile — for hub-piloted aluminum wheels. SAE J1965.

Alcoa 39874 · Euclid 9020 · Dayton 13-3057

Request quote →

Compact

GCW flanged hub nut — silver finish, compact series top-down view
Learn more →

Imperial

GCW flanged hub nut — silver finish, imperial range angled view
Learn more →

Custom OEM

Thread M12–M36 metric · 3/8″–2″ imperial. EN8D standard, other grades on request. Class 6–12 · SAE Grade 2–8. Zn · HDG coating.

Custom stampings per drawing.

Send drawing →

Service Kits

GCW flanged hub nut — silver finish, clean top-down studio view
Inquire →
Application

Flanged hub nut.
Wheel-end application.

The flanged hub nut retains the wheel-end bearing assembly on the axle spindle. The integral flange distributes clamping load across a wider bearing area compared to a standard hex nut and washer.

GCW M22 Flanged Nut Class 10 · A/F 33mm Stud pattern 6 × 285.75mm BC Hub stack Bearing + spindle + rotor Tire envelope 22.5″ · 11R
Manufacturing — Ludhiana

Manufactured in
four controlled stages.

From wire rod to finished, coated, inspected part — four stages, one Ludhiana facility, full lot traceability throughout.

01
Raw material
Wire rod supplied to EN8 specification. Chemistry and mechanical properties certified per heat before production, with EN 10204 3.1 MTC.
02
Hot heading
Hex body and flange formed by hot heading — net-shape part, no material removed, no weld lines.
03
Thread rolling
Internal threads rolled, not cut. Rolling displaces material rather than removing it, keeping grain flow continuous through the thread root for improved fatigue resistance. Tolerance: 6H per DIN 13.
04
Heat treatment, coating & inspection
Heat treatment applied per specification. Coating — zinc or hot-dip galvanising — applied to order. De-embrittlement bake standard on electroplated parts. 100% Go/No-go thread gauging. EN 10204 3.1 MTC issued per lot.
Specifications

Dimensional
Specifications

Download full datasheet PDF →
M22 × 1.5 · SAE J1965 GCW M22 flanged hub nut — silver finish, dimensional reference view
SizeA/F (mm)Height (mm)
M18 × 1.5Available—
M20 × 1.5Available—
M22 × 1.533.030.7

M22 × 1.5 dimensions per GCW product catalogue, material EN8D. M18 / M20 dimensional data available on request — contact us to confirm current spec.

Coatings
Black phosphate standard · Zn · HDG on request
Material
EN8D standard · other grades on request

GCW at a glance

100%
Thread gauged
4
Stage manufacturing process
3.1
EN 10204 MTC per lot
GCW CLASS-8 WHEEL END · 6 × M22 FIG. 04 · WHEEL-END SCHEMATIC
Applications

Wherever a wheel
meets a hub.

From a Class-8 tractor at 800 ft-lb of torque, to the trailer that follows it across two borders, to the agricultural axle that turns once a season — same family of parts, same DIN, same lot.

A · 01
Class 5–8 semi-trucks
A · 02
Bus & coach axles
A · 03
Eaton drive axles
A · 04
Trailer hubs
A · 05
Agricultural axles
A · 06
OEM assembly programs
Ready when you are

Let's get a part number
onto your line.

Send us your thread size, quantity and application — we will respond with pricing and lead time as soon as possible.
